GHL ProfiLux Expansion Cards

For Wholesale pricing please click on login

For Wholesale pricing please click on login

ProfiLux Expansion Cards allow for further controller expansion and are compatible with ProfiLux II, ProfiLux II Outdoor, ProfiLux 3 (all models), ProfiLux 4 and Expansion Box.

Whether measuring pH, ORP, or Conductivity: We offer a wide variety of Expansion Cards to suit your needs.

Expansion cards are automatically detected by the controller and can be combined with each other as needed.

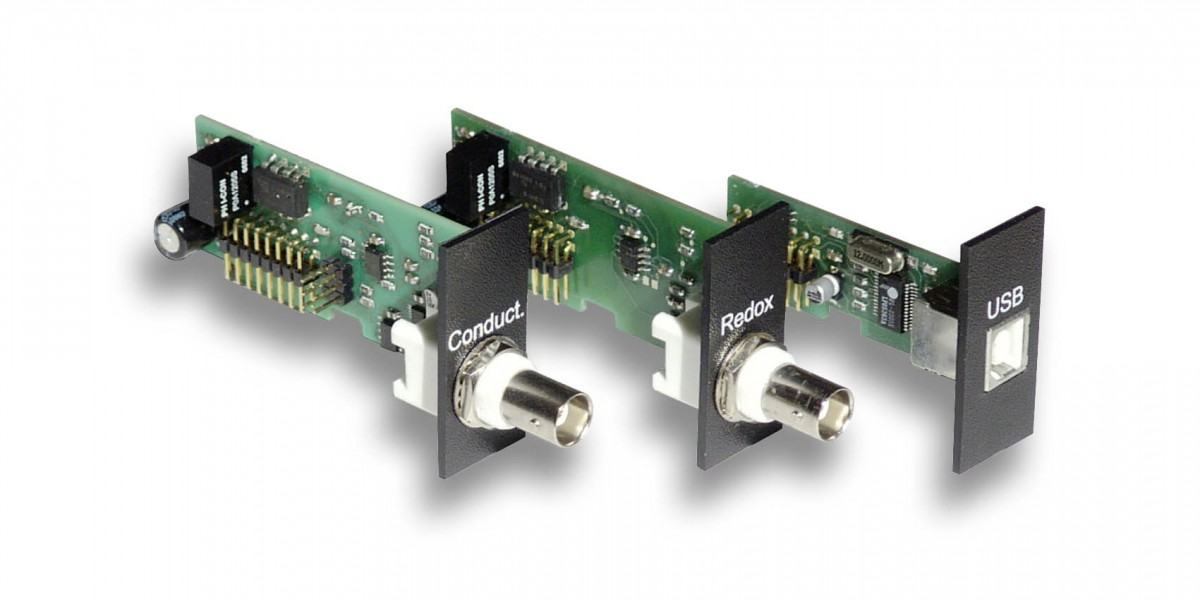

The modules are very easy to add. Similar to a PC the Cards can be inserted into the provided slots of the ProfiLux or the Expansionbox. Thus the devices remain beautifully compact.




Overview of the Expansion Cards available.

Interfaces

PLM-4L

Expansion Card for ProfiLux with 4 1-10V-Interfaces.

PLM-2L4S

Expansion Card for ProfiLux and Expansion Box: Two 1-10 V-Interfaces and control of 4 switchable sockets.

PLM-PWC

Expansion Card for ProfiLux 3 & 4, radio module, wireless communication with Mitras LX.

PLM-RS232

 Expansion Card for ProfiLux with RS232-Interface.

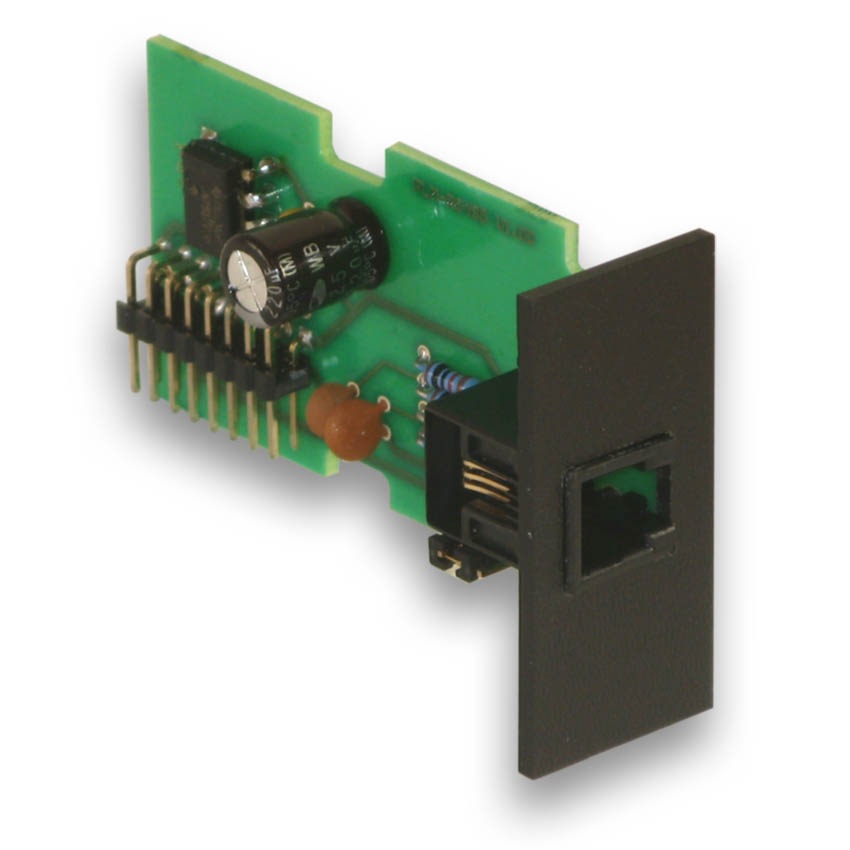

PLM-RS485

Expansion Card for ProfiLux with RS485-Interface.

PLM-ADIN

Expansion card for ProfiLux and Expansionbox with 2 analog inputs 0 V-10 V, 4 digital inputs, all galvanically isolated.



Sensor Inputs

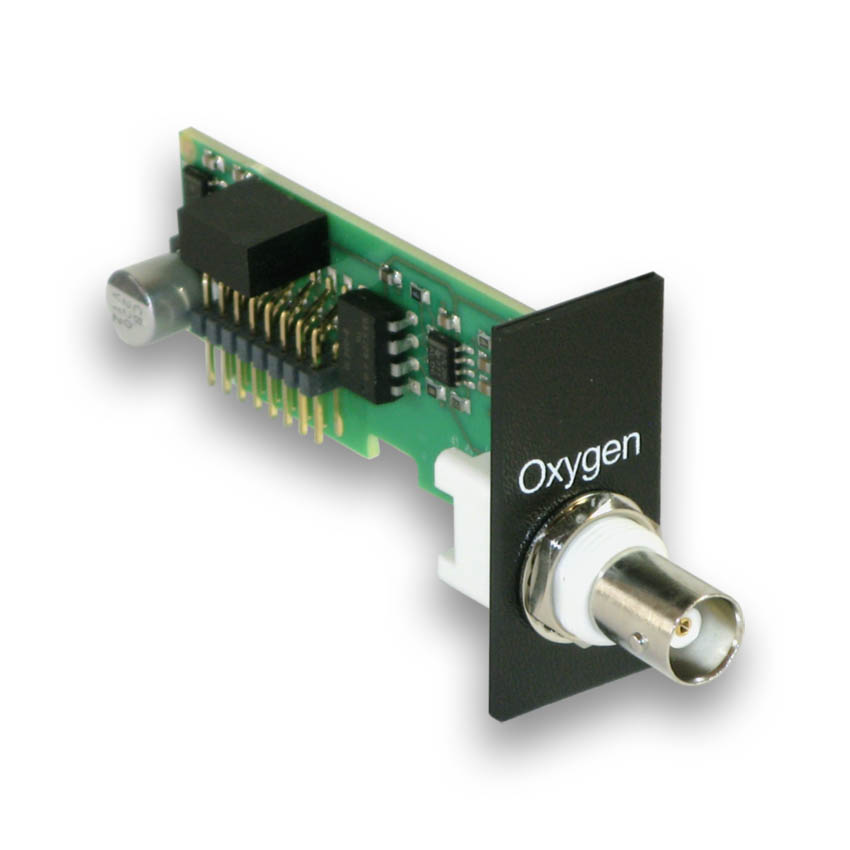

PLM-Oxygen

Expansion Card for ProfiLux and Expansionbox with one galvanically isolated input for Oxygen-Sensor.



PLM-Humidity-Temp

Expansion Card for ProfiLux and Expansion Box: 1 input for combined sensor Air Temperature and Relative Humidity.

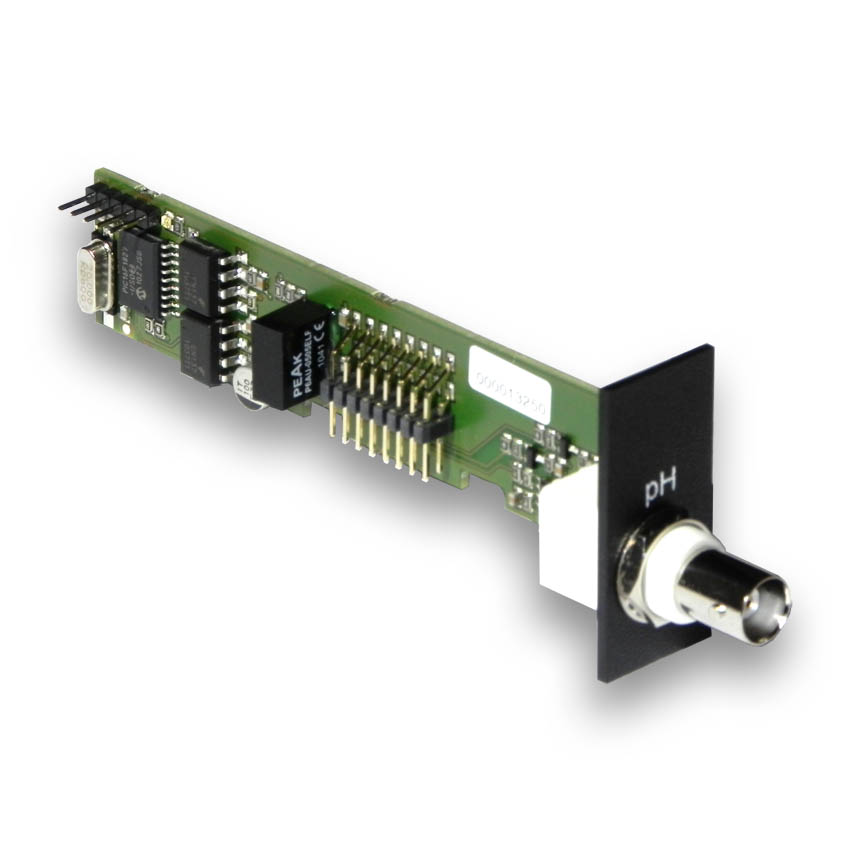

PLM-pH/Redox

Expansion Card for ProfiLux and Expansionbox. The card is intended for pH measurement OR for measurement of Redox. With two plates to put in front (pH and Redox).

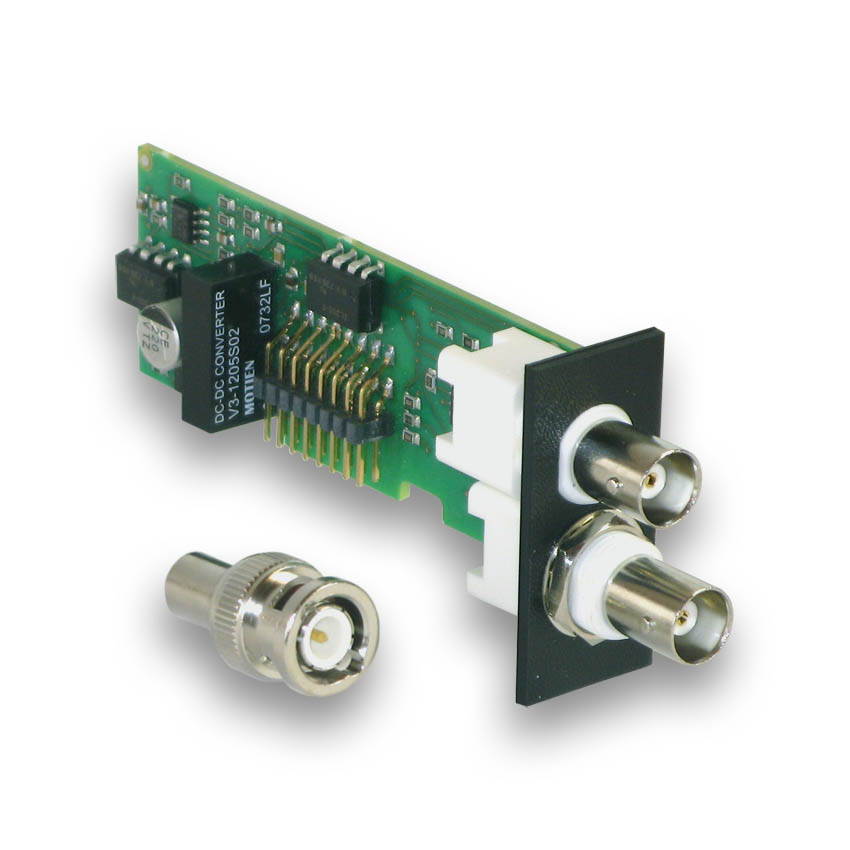

PLM-pH/Redox-Cond

Expansion Card for ProfiLux and Expansion Box: 1 switchable input for Conductivity Sensor, measurement range 0 – 100 mS or 0 – 2 mS, galvanically isolated + 1 switchable input for pH-Value Sensor or Redox Sensor, galvanically isolated.

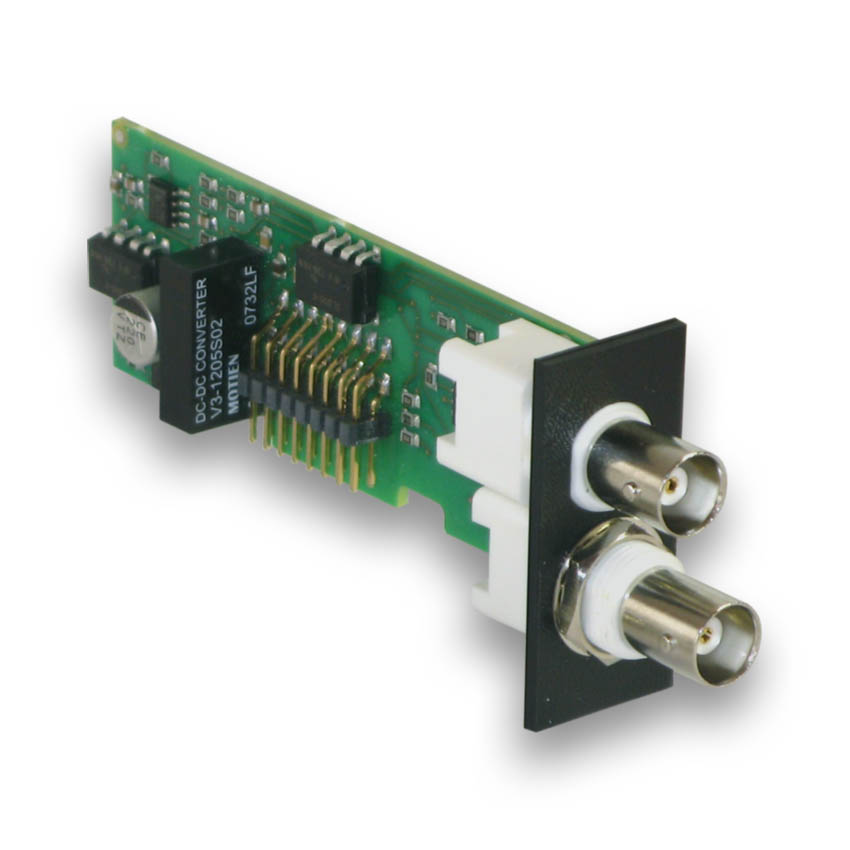

PLM-CondS-pH

 Expansion Card for ProfiLux and Expansion Box: 1 galvanically isolated input for Conductivity Sensor, measurement range 0 – 100 mS + 1 galvanically isolated input for pH Sensor.



PLM-CondF-pH

 Expansion Card for ProfiLux and Expansion Box: 1 galvanically isolated input for Conductivity Sensor, measurement range 0 – 2 mS + 1 galvanically isolated input for pH Sensor.



PLM-CondF-Redox

Expansion Card for ProfiLux and Expansion Box: 1 galvanically isolated input for Conductivity Sensor, measurement range 0 – 2 mS + 1 galvanically isolated input for Redox Sensor.

PLM-pH-Redox-2Level

Expansion Card for ProfiLux and Expansion Box: 1 switchable galvanically isolated input for pH-Value Sensor or Redox Sensor + 2 inputs for Level- or Flow-Sensors.

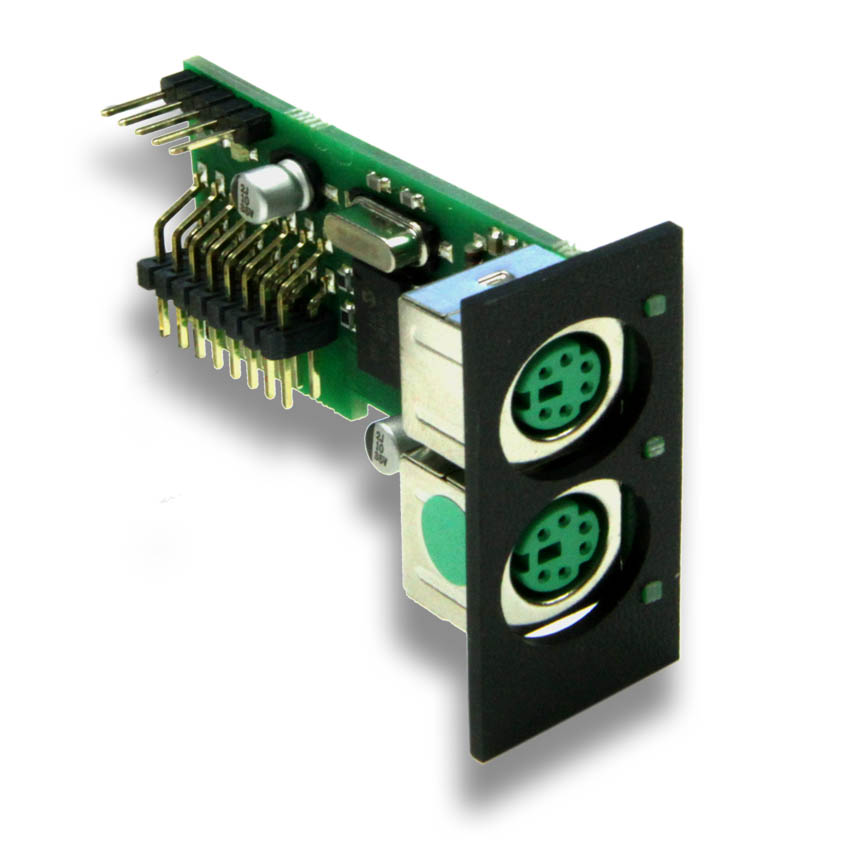

PLM-4Level

Expansion Card for ProfiLux and Expansionbox with 4 inputs for Level Sensors or Flow Sensors.

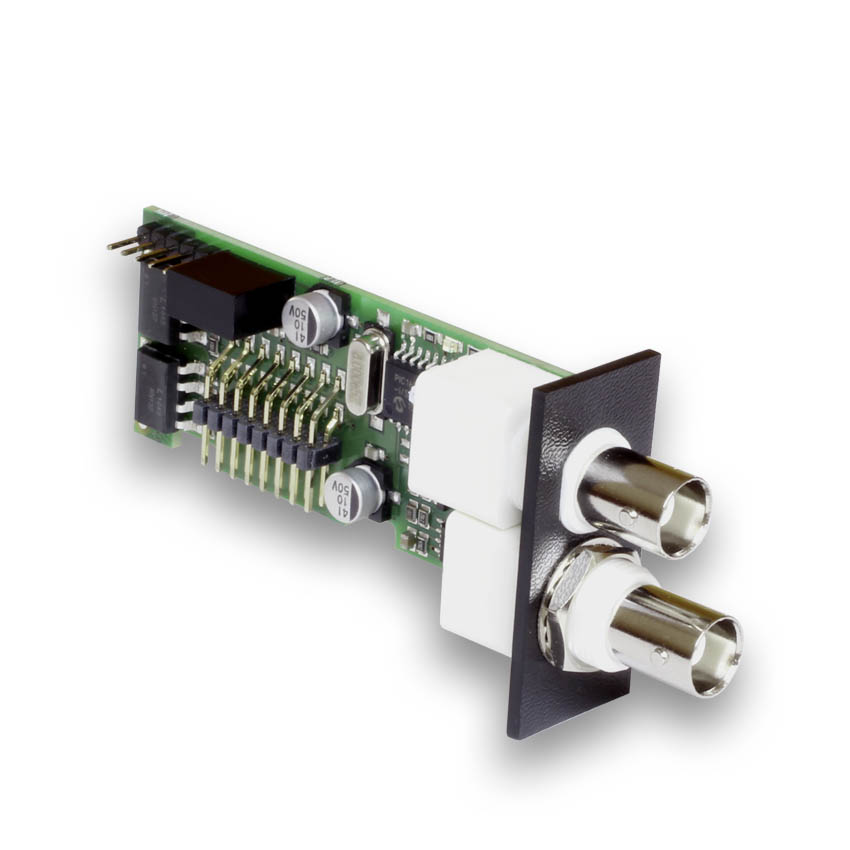

PLM-pH-Redox-DigTemp

Expansion Card for ProfiLux and Expansion Box: 1 switchable input for pH-Value Sensor or Redox sensor, galvanically isolated + 1 input for Digital Water Temperature sensor, galvanically isolated. Can only be used for connecting Digital Water Temperature Sensor.
